Technical Specification

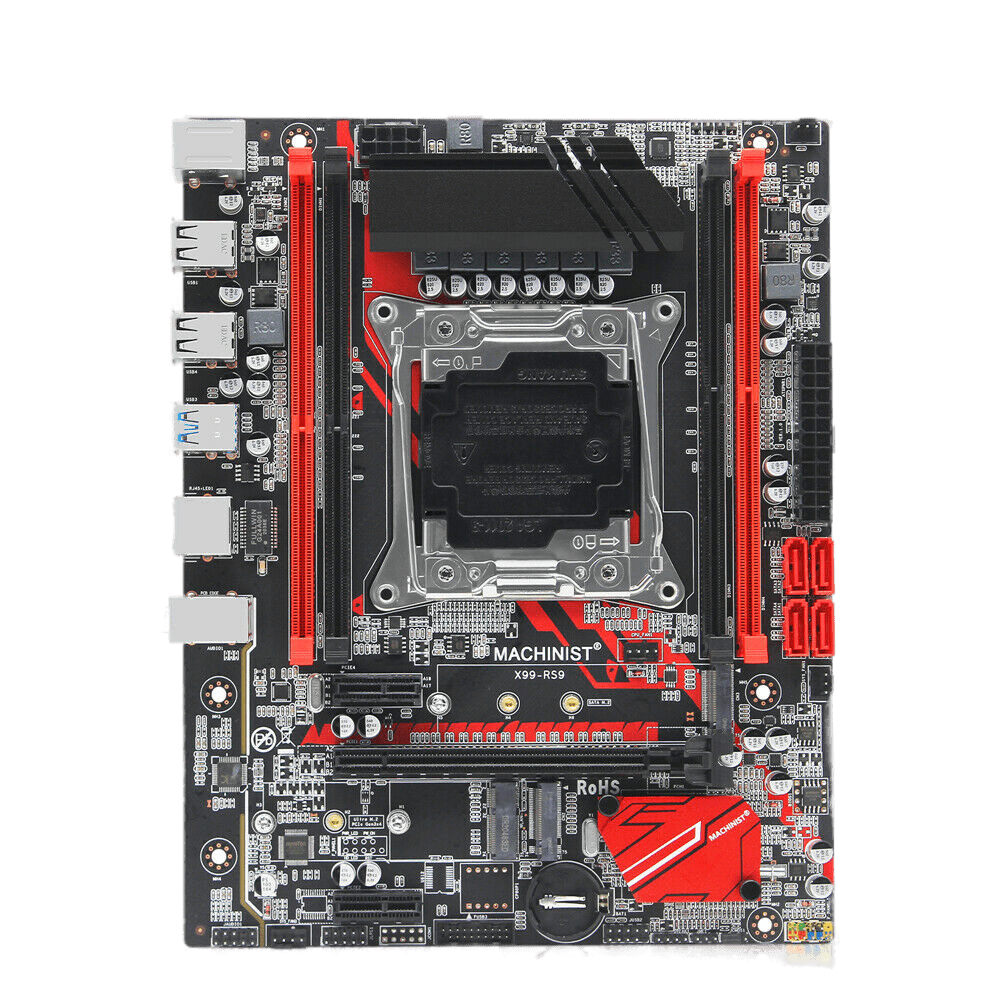

Machinist X99-RS9:
Socket: LGA 2011-3
Chipset: Q87 \ B85 or other desktop

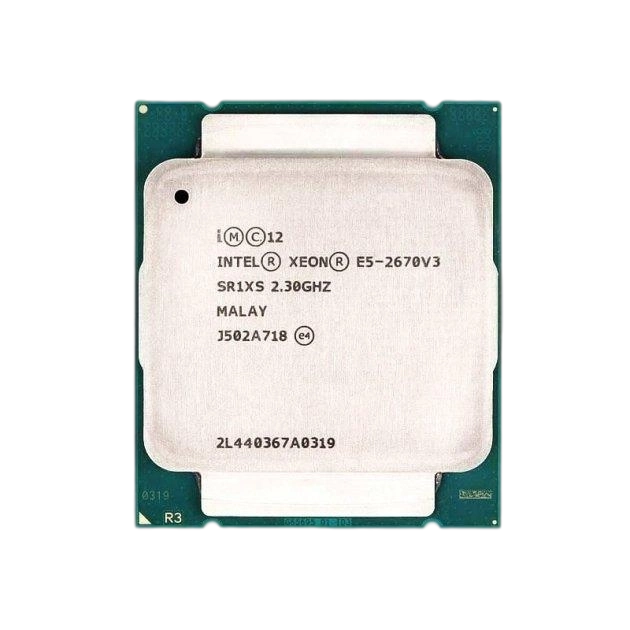

Supported processors: Intel Core, Xeon 1600, 2600 (v3, v4)
Approximate maximum CPU TDP: ≤120W

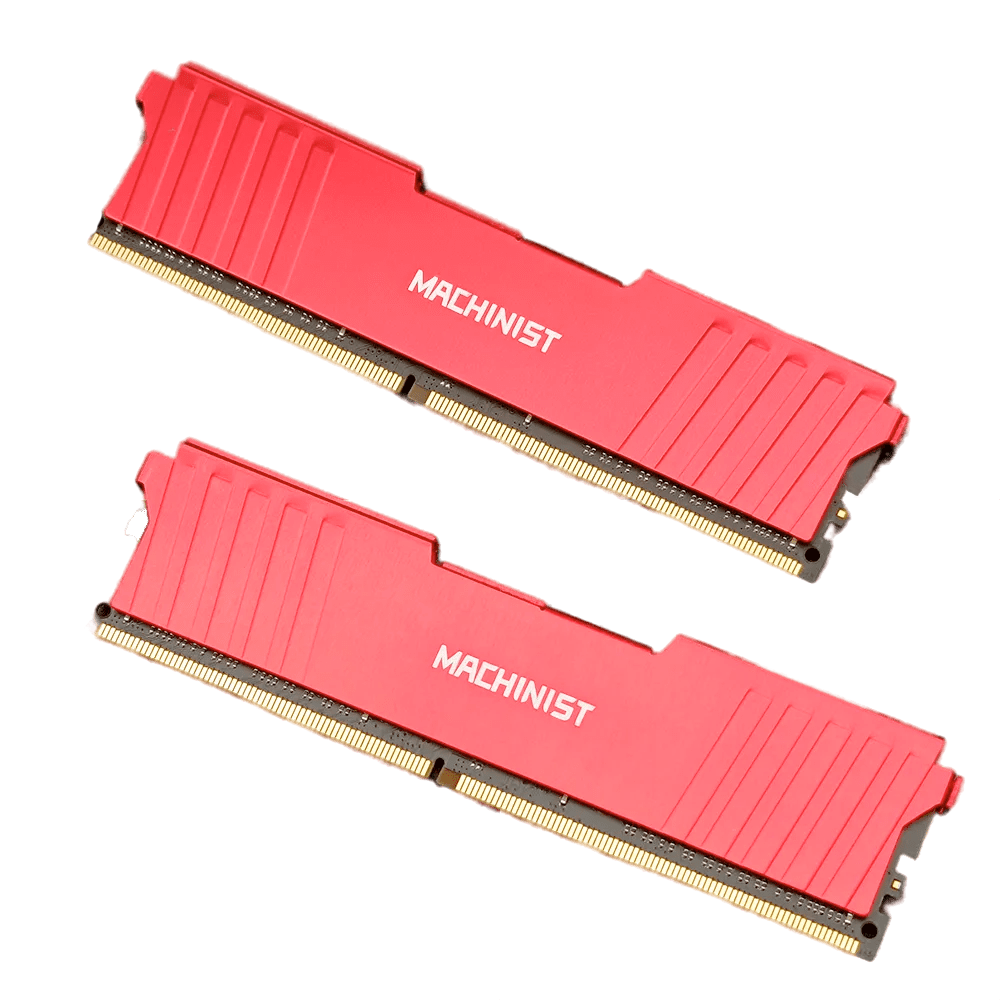

Supported RAM: 4 x DDR4 DIMM, quad-channel, support for ECC and non-ECC memory
1866\2133\2400 MHz
Maximum capacity: 64 GB
Timing control: Yes
Expansion slots: 1 x PCI-e x16 3.0
2 x PCI-e X1
Disk subsystem: 4 x SATA 3.0
1 x M2 NVME GEN 3
1 x M2 NGFF
Fan connectors: 1 x for CPU cooler (4 pin)
1 x for case fans (4 pin)
2 x for case fans (3 pin)
Ports: 2 x PS/2
2 x USB 3.0 (+ remote on the case)
4 x USB 2.0 (+ remote on the body)
1 x LAN
5.1 audio (ALC897)
Form factor and Dimensions, mm mATX, 235 x 185 mm.
